Sounder: Fish finding system SI-FT1000
|
Colour LCD monitor from 17 to 21 inches with 1024x768 resolution
Wide dynamic range of target detection from plankton to rock bottom
Possibility of usage an additional 200 or 38 kHz channel as echosounder
Separate and combined presentation of echosounder and trawl sounder information
Linear record and accelerated reproduction of information having unrestricted
Graphic and digital presentation of horizon of trawl moving and temperature of
Presentation of navigation characteristics and navigation data on a display
Operating with a help of trackball and menu on Russian and other languages
Shockproof compact and light weight trawl unit
Connection of trawl unit to board equipment via cable of cable winch
Control of cable and trawl unit state
Signaling on determined depth and detected fish
Sounders view mode:

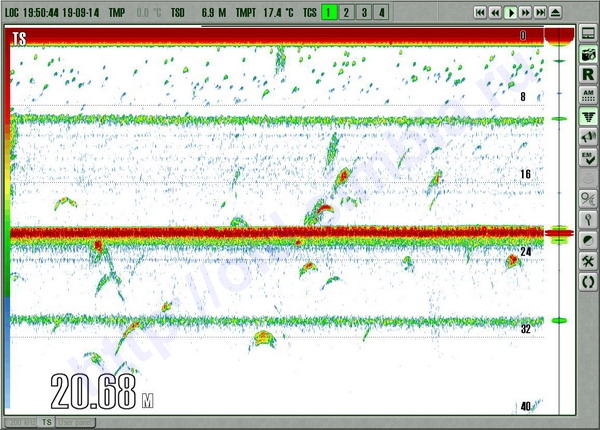

Single mode

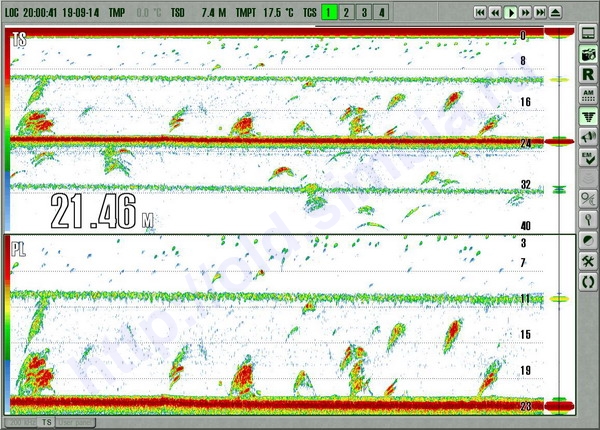

Pelagic mode

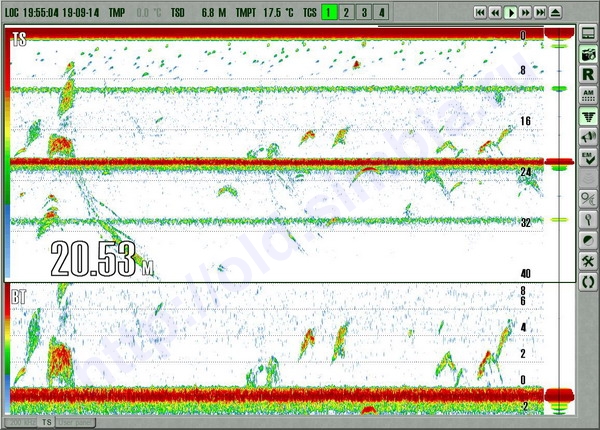

Bottom mode

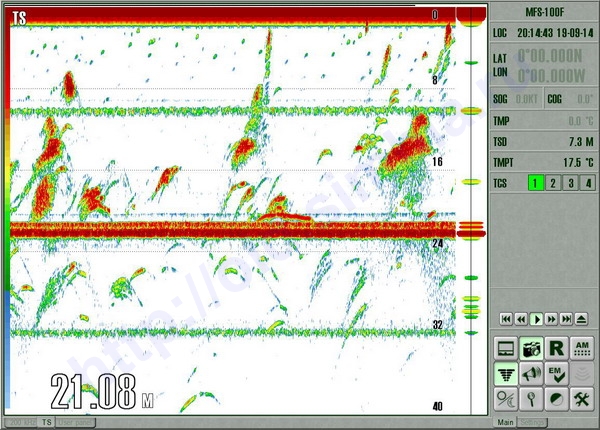

Navigation mode
Picture view mode

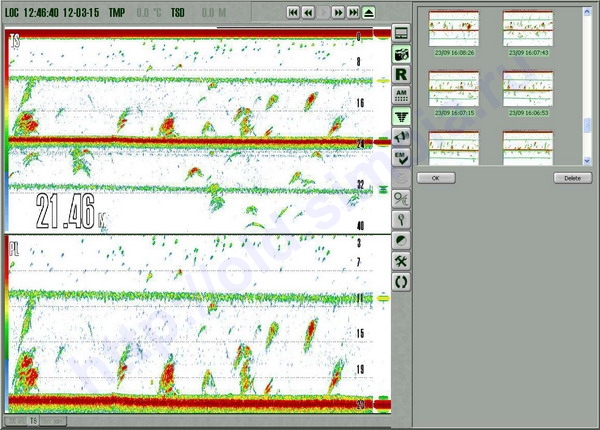

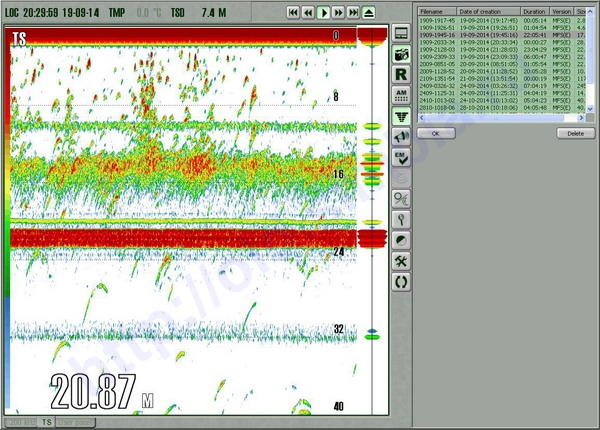

Play echo mode
Technical data:
| Parameters, function | Values
| | Operating frequency: |
| | souder, kHz | 50 ±1
| | echosounder, kHz | 200±1 (18, 20,25, 27, 28, 30, 38, 40, 51, 70,75, 100, 120, 150)
| | Detection of: |
| | fish, m | 300/200
| | bottom-sand, m | 1000/500
| | A range, m | 5, 10, 20, 40, 80, 100, 200, 400, 800, 1000
| | Trawl units | SI-110, SI-110 F, SI-110-2
| | Depth of trawl movingrange, m accuracy till 200 maccuracy above 200 m |
0 -1000 (0 - 2500)
±3 m
±1,5 %
| | Temperature sensorrange, Ñaccuracy, Ñ |
from - 5 to + 30
±0,3 |
|

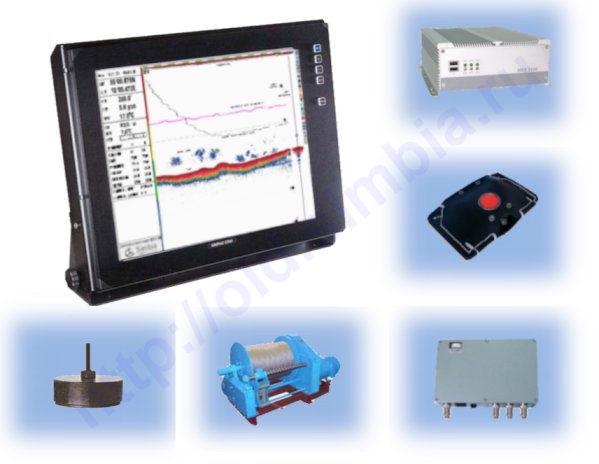

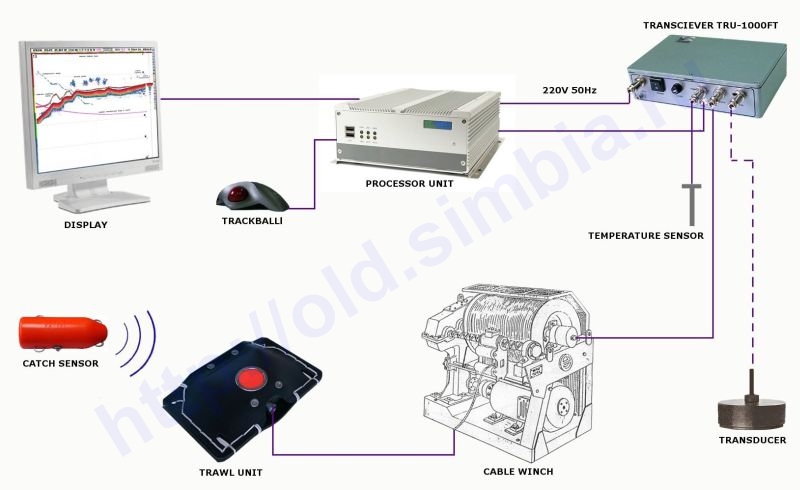

Scope of delivery:
Main:

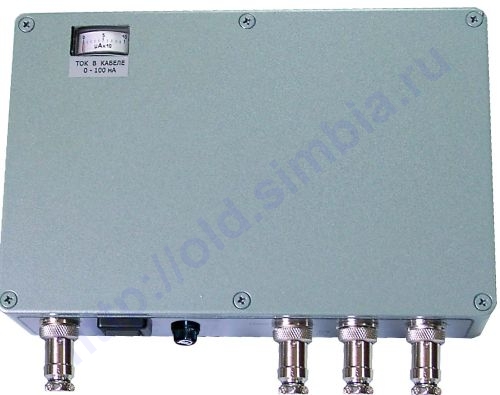

Transciever TRU-1000
Trawl units SI-110, SI-110 F, SI-110-2
Cd with a software
Spare parts kit
Installation kit
Operation documentation
Options:
Processing unit of computer
Trackball (mouse), keyboard
LCD monitor from 17 to 22 inches
Computer monoblock or notebook
Transducer 200 kHz
Cable winch SVL-4
|
| |
 |
|
| |
|
