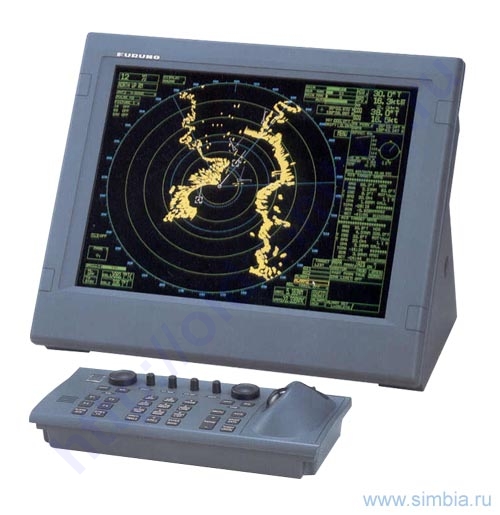

Radars: Furuno FAR- 2817 / 2827 / 2837
|
|
|
Colored radar station with high resolution.
Delivery with display 23'' inches or Black Box execution.
Is approved in accordance with SOLAS convention for vessels having gross
tonnage more than 10000 ॣ. ton.
Advanced signal processing for improved detection in rough sea.
Up to four radars can be interswitched in the network without an
extra device.
Automatic plotting/tracking of 100 targets manually or automatically
acquired.
Easy operation by customizable function keys, trackball/wheel palm
module and rotary controls.
Displays up to 1000 AIS equipped targets.
Small probability of false targets.
|
Technical specifications:
| Parameters, function | Values
| | Antenna type | XN-12AF (X-BAND, 4’) 1,9° õ 20°
XN-20AF (X-BAND, 6.5’) 1,23° õ 20°
XN-24AF (X-BAND, 8’) 0,95° õ 20°
SN-30AF (S-BAND, 10’) 2,3° õ 25°
SN-36AF (S-BAND, 12’) 1,8° õ 25°
| | Speed of rotation | X-BAND: 24 or 42 turns/min
S-BAND: 21 (50 Hz), 26 (60 Hz) or 45 turns/min
| | Transceiver frequency | X-BAND: 9410 ÌHz ±30ÌHz
S-BAND: 3050 ÌHz ±30ÌHz
| | Output power | FAR-2817 - 12 kW
FAR-2827 - 25 kW
FAR-2837S - 30 kW
| | Display type | 23,1" colored LCD, SVGA 1280x1024 pixel
| | Dimensions | 470 õ 353 mm
| | Effective diameter | 340 mm
| | Echo’s color | Yellow, green or white in 32 combination
| | Scale intervals of range | 0.125, 0.25, 0.5, 0.75, 1.5, 3, 6, 12, 24, 48, 96 nm
| | Intervals of range ring | 0.025, 0.05, 0.1, 0.25, 0.5, 1, 2, 4, 8, 16 nm
| | Minimum range | 30 m on a scale 0,75 nm
| | Minimum target range detection | 30 m on a scale 0,75 nm
| | Accuracy of ring range | ±0,2%
| | Working mode | True course, true north, relative motion
| | Map | 1500 points to create coastlines, own ship safety contour, isolated
underwater dangers, buoys, traffic routing systems, prohibited areas,
fairways as required by IMO
| | Power supply: |
| | Processor | 24 VDC or 115/230 VAC 50/60 Hz
440 VAC, 50/60 Hz (with transformer)
| | Display | 24 VDC or 115/230 VAC 50/60 Hz
440 VAC, 50/60 Hz (with transformer)
| | Antenna | 230 VAC, 60 Ãö or 115 VAC, 60 Hz, 230 VAC, 60 Hz
440 VAC, 60 Hz (with transformer)
|
|
A scope of delivery:
Standard:
- Display 23,1" LCD SVGA
- Processor
- Trackball
- Keyboard control unit
- Antenna unit with cable (12/20/30/50/100 m)
- Transceiver unit
- Power supply (for FAR-2837S)
- Mounting tools and spare parts
Option:
- Remote control unit
- Gyro Interface IGL-01
- RMRS certificate
|
| |
 |
|
| |
|
