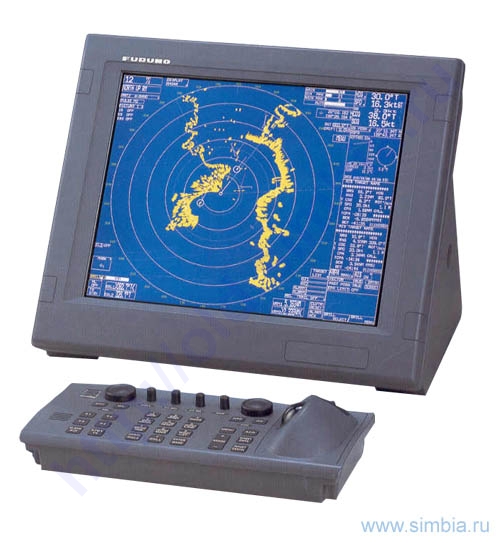

Radars: Furuno FAR- 2117 / 2127 / 2137
|
|
|
Advanced signal processing for improved detection in rough sea.
LCD display with clear representation.
Designed to comply with SOLAS carriage in bearing frequencies for vessels up to 10,000 GT.
Up to four radars can be interswitched in the network without an extra device.
Automatic plotting/tracking of 100 targets manually or automatically acquired.
Easy operation by customizable function keys, trackball/wheel palm module and rotary controls.
Low spurious magnetrons meeting ITU-R unwanted emission standards.
Displays up to 1000 AIS equipped targets.
Control unit with a full keyboard.
Improved characteristics of target detection.
Type approval from RMRS.
Replies to the demands:
IEC 60936-1 for vessel radars
IEC 60936-2 for radars HSC
IEC 60872-1 for ARPA
IEC 60872-2 for ATA
IEC 60945 general demands
IMO MSC.64 (67) Addition 4
IMO A.823 (19)
|
Technical specifications:
| Parameters, function | Values
| | Antenna type | XN-12AF (X-BAND, 4') 1,9° õ 20°
XN-20AF (X-BAND, 6.5') 1,23° õ 20°
XN-24AF (X-BAND, 8') 0,95° õ 20°
SN-30AF (S-BAND, 10') 2,3° õ 25°
SN-36AF (S-BAND, 12') 1,8° õ 25°
| | Speed of rotation | X-BAND: 24 or 42 turns/min
S-BAND: 21 (50 Hz), 26 (60 Hz) or 45 turns/min
| | Transceiver frequency | X-BAND: 9410 ÌHz +30ÌHz
S-BAND: 3050 ÌHz +30ÌHz
| | Output power | FAR-2117 - 12 kW
FAR-2127 - 25 kW
FAR-2137S - 30 kW
| | Display type | 23,1"" colored LCD, SVGA 1280x1024 pixel
| | Dimensions | 470 õ 353 mm
| | Effective diameter | 340 mm
| | Echo's color | Yellow, green or white in 32 combination
| | Scale intervals of range | 0.125, 0.25, 0.5, 0.75, 1.5, 3, 6, 12, 24, 48, 96 nm
| | Intervals of range ring | 0.025, 0.05, 0.1, 0.25, 0.5, 1, 2, 4, 8, 16 nm
| | Minimum range | 30 m on a scale 0,75 nm
| | Minimum target range detection | 30 m on a scale 0,75 nm
| | Accuracy of ring range | 0,20%
| | Working mode | True course, true north, relative motion
| | Map | 1500 points to create coastlines, own ship safety contour, isolated
underwater dangers, buoys, traffic routing systems, prohibited areas,
fairways as required by IMO
| | Heading sensor | Furuno GPS compass SC-60/120 is recommended as gyro reserve
| | Acquisition | 100 targets (for instance, manually 50, automatic 50)
| | Tracking | Automatic tracking of all acquired targets in 0.1-32 nm
| | Guard zone | 2 zones with width 0.5 nm
| | Past positions | 5 or 10 past positions at intervals 30 sec., 1,2,3,6 min
| | Speed vector length | True or relative 30 s., 1, 3, 6, 12, 15, 30 min
| | Collision warning | CPA limit 0.2 to 10 mile: TCPA limit 0-99 min
| | Trial maneuver | Dynamic or static, with selected delay time
| | AIS functions | entering necessary data
| | Map | 1500 points to create coastlines, own ship safety contour, isolated
underwater dangers, buoys, traffic routing systems, prohibited areas,
fairways as required by IMO
| | Power supply: |
| | Processor | 24 VDC èëè 115/230 VAC 50/60 Ãö
440 VAC, 50/60 Ãö (ïðåîáðàçîâàòåëü)
| | Display | 24 VDC èëè 115/230 VAC 50/60 Ãö
440 VAC, 50/60 Ãö (ïðåîáðàçîâàòåëü)
| | Antenna | 230 VAC, 60 Ãö èëè 115 VAC, 60 Ãö, 230 VAC, 60 Ãö
440 VAC, 60 Ãö (ïðåîáðàçîâàòåëü)
|
|
A scope of delivery:
- Display unit MU-201CR
- Processor RPU-013
- Keyboard RCU-014
- Trackball RCU-015
- Antenna with cable, 15/20/30/50/100 m
- Power supply PSU-007 for FAR-2137S
- Standard spare parts and mounting tools
- RMRS certificate
|
| |
 |
|
| |
|
