Radars: Furuno FR - 2115 / 2125 / 2155

Radars Furuno FR - 2115 / 2125 / 2155



  • Output capacity 12 kW (FR-2115), 25 kW (FR-2125) or 50 kW (FR-2155).

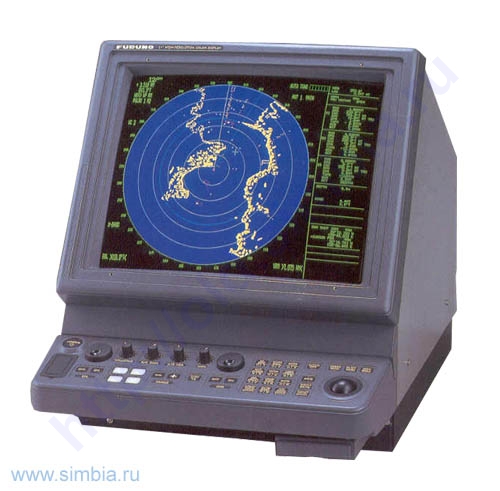

  • Daylight-bright resterscan 21-inch multi-color, high-resolution display.
  • Radius of round-up up to 96 nm.
  • New technologies of signal treatment.
  • New cast aluminum scanner gearbox and new series of streamlined antennas.
  • Easy operation by a combination of discrete keys, Track ball and menu.
  • Electronic Plotting Aid (EPA) fitted as standard, Automatic Radar Plotting Aid (ARPA) option exceeding IMO and IEC standards.
  • Reliable CPA and TCPA warning in any plotting mode, accurate target data.
  • Optional 42 rpm scanner for high speed vessels.
  • Voltage is 115/230 V AC.

  • Technical specifications:

    Parameters, functionValues
    Antenna typeSlotted waveguide array
    Rotation24/42 turns/min
    Horizontal beamwidth1,8, 1,23, 0,95, 0,75
    Vertical beamwidth 20
    Working frequency 941030Hz (X-band)
    941530Hz (50 kW model)
    Output power12 kW (FR-2115)
    25 kW (FR-2125)
    50 kW (FR-2155)
    Frequency60 Hz
    Noise figure 6 dB
    Display type21" color CRT, 1280x1024 pixel
    Modes of reflection Head-Up, Head-Up TB, Course-Up, North-Up, True Motion
    Detection ranges 0.125, 0.25, 0.5, 0.75, 1.5, 3, 6, 12, 24, 48, 96 nm
    Ring ranges 0.025, 0.05, 0.1, 0.25, 0.25, 0,5, 1, 2, 4, 8, 16 nm
    Minimum range and discrimination 35 m
    Input NMEA 0183 data$xxGGA, $xxGLL, $xxRMA, $xxRMB, $xxRMC
    $xxBWR, $xxBWC, $xxWPL, $xxRTE, $xxDPT
    $xxDBT, $xxDBS, $xxVDR, $xxMWV, $xxVBW
    $xxVHW, $xxVWT, $xxVWR, $xxZDA, $xxMTW, $xxVTG
    Output NMEA 0183 data$RAOSD, $RARSD, $RATTM

    A scope of delivery:

      Standard set:
    • Display
    • Antenna
    • Transducer cable 30 m
    • Installation materials and spare parts

      Option:

    • Gyro IGL-01
    • Video Plotter RP-26
    • Radiation detector PM-30
    • Auto Plotter ARP-26
