Trawl sounder: Simbia ÑÈ - 6812
|
|
|
Autonomic sounder with cable line of connection for small vessels.
There are modes "Sounder", "Echosounder" with an extra mode "Plotter".
Reflection of information on 6,5 inches color display manufactured by JMC (Japan).
Shockproof compact trawl unit.
|
Technical specifications:
| Parameters, function | Values
| | Max depth of immersion | 400 m
| | Cable length KG1-30 (d 6,3 mm): |
| | trawl unit SI-12 | 800 m
| | trawl unit SI-12M | 400 m
| | Registration range of trawl opening | 50 m
| | Detection range: |
| | of big single fish (Rý = 0,1 ì) | >30 m
| | of bottom (silt, sand ) | >200 m
| | Power supply | 24 V, 1,5 VA
| | Dimensions: |
| | trawl unit SI-12 | 350 õ 300 õ80 mm
| | trawl unit SI-12M | 350 õ 300 õ 80 mm
| | display V-6802 | 250 õ 280 õ 120 mm
| | interface SI-50 | 90 õ 60 õ 40 mm
| | Mass: |
| | trawl unit SI-12 | 4,0 kg
| | trawl unit SI-12M | 3,0 kg
| | display V-6802 | 2,5 kg
| | interface SI-50 | 0,4 kg
|
|

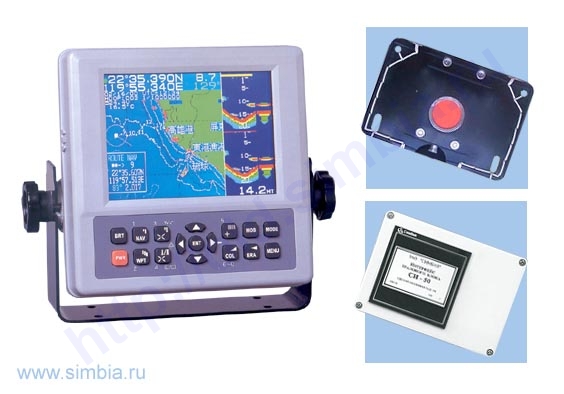

A scope of delivery:
- Dispaly V-6802Ð;
- Trawl units SI-12;
- Interface SI-50;
- Transducer;
- Mounting and spare parts.
Options:
- Power supply SI-V-180
- Temperature sensor Ò-300
- Echosounder transducer RS201
- Trawl unit SI-12 M
|
| |
 |
|
| |
|
