Course Synchro Translator SI-TC- 8
|
|
|
Using on vessels with new gyrocompasses for contol selsyn repeater.
Data transformation from gyrocompass into 3-phase selsyn control signal.
Providing selsyns with activation voltage.
Receiveing course denotation in formate NMEA 0183 or from step output of gyrocompass is done by jumper.
Transming course in IEC 61162 / NMEA 0183 standard.
Possibility of simulteneous manual course coordination of all repeater units with gyrocompass readings.
|
Technical Specifications:
| Parameters, function | Values
| | Course Signal Input | Step voltage amplitude, range of input signal 20 - 75V, 6 steps/degree.
| | Course Signal Input | IEC 61162 / NMEA 0183 - $HEHDT,ÕÕÕ.X,T,*hh
| | Activation voltage | 110 V 5%, 50Hz or 500Hz
| | Course Ratio | 1° course alteration per selsyn rotation.
| | Output NMEA 0183 | $HEHDT,ÕÕÕ.X,T,*hh
$HEHDÌ,ÕÕÕ.X,Ì,*hh
Transmission speed - 4800 baud.
| | Output synchro signal | By amplitude 43V with possibility to regulate in the range of 5%, maximal voltage current 1À
| | Time of data renewal | 1sec / 0.1 sec.
| | Rate of Turn 180° | 1 min 40 sec.
| | Power Supply | 220 V +10% -15%, 50 Hz, 100 VA.
| | Weight | Not exceeding 5,0 kg
| | Dimensions | Not exceeding 272 x 188 x 125 mm
|
|
A scope of delivery:

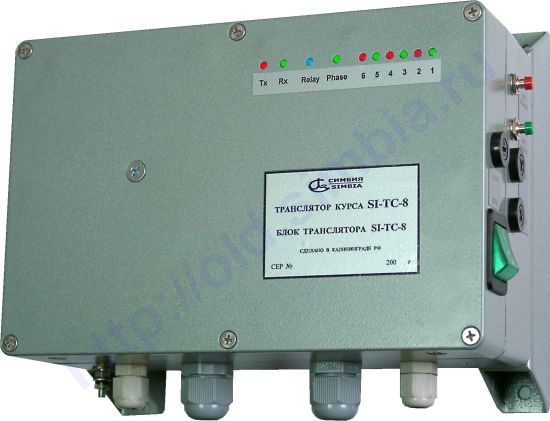

- Translator Unit "SI-TC-8"
- Synchro activation unit (50 Hz or 500 Hz)
- Manual Ñ5.105.016
- Installation Kit
|
| |
 |
|
| |
|
