| Parameters, function | Values
|

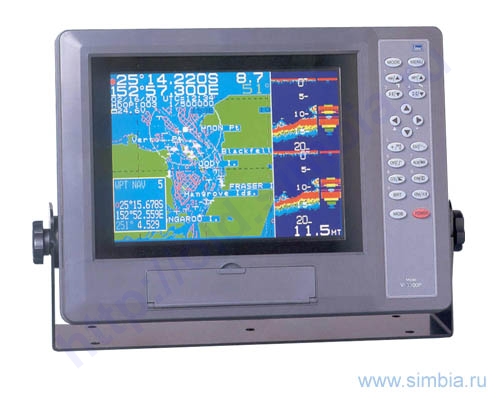

| Screen | analog RGB-color backlit TFT-LCD, daylight viewing, 26,4 centimeters (10,4")
|
| Background Colors | white, gray, black, cyan, blue, and dark blue
|
| Echo Colors, resolution | 8 analog RGB colors, 320õ240 pixels
|
| Echogram Storage Capacity | 10 screen pages
|
| Transducer Frequency | Dual frequency: 50/ 200 kHz
|
| Transmit Power | 1 kW, RMS
|
| Depth Ranges, m (Fò, Fì, Br) | 16 ranges: from 2,5 to 1000 m
|
| Phasing range | 1-unit step phasing from 0 to 999 m
|
| Bottom Tracking Modes | auto range and auto shift
|
| Expansion Ranges | 8 ranges: from 1.5 to 200 m
|
| Image Feed Rates | 1 : 1 or freeze
|
| Noise Reduction | low, mid and high
|
| Echo Threshold | up to 5 weak echo colors suppressible
|
| White Line | up to 5 strong colors of bottom echo suppressible
|
| Echo Dynamic Ranges | from 3 to 7 dB/color
|
| STC (TVG) | adjustable in 20 steps
|
| Transducer Draft | adjustable in 0.1 unit steps
|
| Alarm | depth alarm and fish alarm
|
| Temperature Sensor | T-300 or T-400 thermistor (option)
|
| Digital I/O Interface | NMEA-0183
|
| Type of transducers | RS-706-50/200Ò, RS-706-50/200Ò-3000, RS-570-50/200
|
| Power Requirements | 11 to 40 volts DC, approx.22W
|
| Ambient Temperature | -10 to 50°C, 95% RH without condensation
|
| Cabinet Dimensions | 366õ245õ110 mm
|
| Display Unit Weight | approx. 3.8 kg with mounting bracket attached
|
