Satellite systems: Thrane&Thrane Fleet 55
|
|
|
Constant dialog mode of excess to Internet.
Meets the last technical requirements to Inmarsat Fleet 55.
Excess to a net ISDN with a speed 64 KB/sec in area of zonal beams of Inmarsat.
Sound message about location in area of zonal beams of Inmarsat.
High quality voice transmitting in area of zonal beams of Inmarsat.
Mini-Ì telephoning - global coverage of earth surface.
Easiness in installation thank to compact execution of antenna and transceiver.
Easiness and efficiency in terminal programming with a help of computer or
phone tube.
Hub for vessel computer net.
Compact, reliable and economic terminal with comfortable interface.
|
Technical specifications:
| Parameters, function | Values
| | Ranges of frequencies | Transmitter 1525,0 - 1559,0 MHz
Receiver - 1626.5 - 1660.5 ÌHz
| | Strip width during receive | 1.25 kHz
| | Modulation during receive: |
| | telephoning, fax | 5.6 KB/sec O-QPSK SCPC, 6 KB/sec – BPSK TDM
| | data transmitting | 134.4 KB/sec 16 QAM SCPC
| | Modulation during transmitting: |
| | telephoning, fax | 5.6 KB/sec O-QPSK SCPC, 3 KB/sec – BPSK TDM
| | data transmitting | 134.4 KB/sec 16 QAM SCPC
| | Speech transmitting | 4.8 KB/sec, ÀÌÂÅ: 64 KB/sec, broadcast
| | Admissible parameters of vessel move: |
| | rolling | + 15°
| | pitching | + 8°
| | Temperature range | From - 25° Ñ to 55° Ñ for superstructure equipment
From - 15° Ñ to 45° Ñ for under deck equipment
| | Power supply | 24 VDC, 200 W
| | Dimensions: |
| | Transmitter ÒÒ-3038Ñ | 53.75 x 377 x 163.7 mm
| | Vessel antenna ÒÒ-3008F | Diameter 570 mm, height 680 mm
| | Holder of phone tube ÒÒ-3622Ñ | 160 õ 61 õ 27 mm
| | Phone tube ÒÒ-3620F | 200 õ 52 õ 33 mm
| | Mass: |
| | Transmitter ÒÒ-3038Ñ | 2.6 kg
| | Vessel antenna ÒÒ-3008F | 18 kg
| | Holder of phone tube ÒÒ-3622Ñ | 0.15 kg
| | Phone tube ÒÒ-3620F | 0,25 kg
|
|

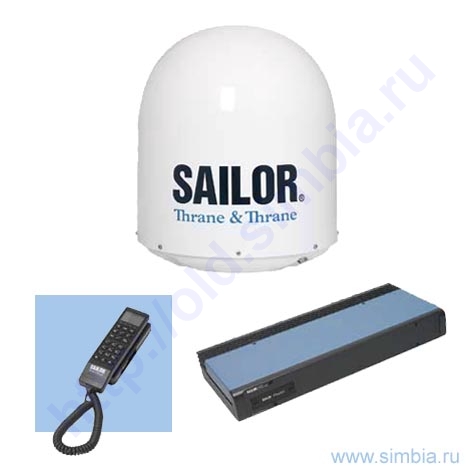

A scope of delivery:
- Transmitter
- Marine stabilized antenna
- Phone tube
- Phone tube holder
- Antenna cable
- Interblock cables
- Connectors for cable
- Manuals on Russian and English
- A set of mounting tools.
|
| |
 |
|
| |
|
