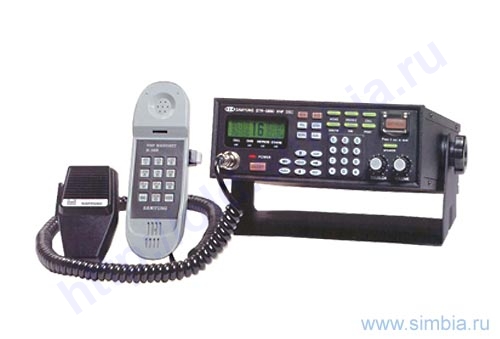

VHF radio telephone: Samyung STR-580D
|
|
STR-580D (Samyung, Korea) is a marine VHF radio telephone
with build-in DSC receiver A class. 999 channels (ITU, USA,
weather, private). Continuous watch on 70 CH DSC. Automatic
entry of own ship position with manual override.
Compact cabinet for ease of installation. Reasonable price.
Scanning of two channels or multi-channel scanning.
Self-diagnosis function for easy maintenance.
Corresponds to the requirements of IMO regarding GMDSS.
Has a type approval from RMRS. Has a type approval from DMT.
|
Technical specifications:
Parameters, function | Values
| Frequency range | 146 - 174 MHz
| Mode of work | Simplex, duplex, DSC
| Type of emission | F3E, F2B, (G3E, G2B)
| Antenna resistance | 50 Îm
| Power supply | 13,6 V
| Consumed current | 6 À when transmitting, 0,6 À when receiving
| Dimensions | 302 õ 266 õ 126 mm
| Weight | 4,45 kg
| Transmitter: |
| Output capacity | 25 W or 1 W
| Type of modulation | frequency
| Speed of transmitting DSC | 1200 baud
| Frequency stability | ± 5 kHz
| Receiver: |
| Type | Double super heterodyne
| Audio output | 1 W (build-in loud speaker 8 Îm)
| Sensitivity | 0,25 microV
| DSC: |
| Frequency | 156,525 MHz
| Type of emission | F2B (G2B) 0,5% |
|
A scope of delivery:
Standard:
- Transceiver;
- Flagpole antenna;
- Microphone;
- Loud speaker;
- Power supply unit;
- Mounting set;
- User manual.
Option:
- Printer;
- Lamp of alarm highlight;
- Handset.
|
| |
|
| |
|
