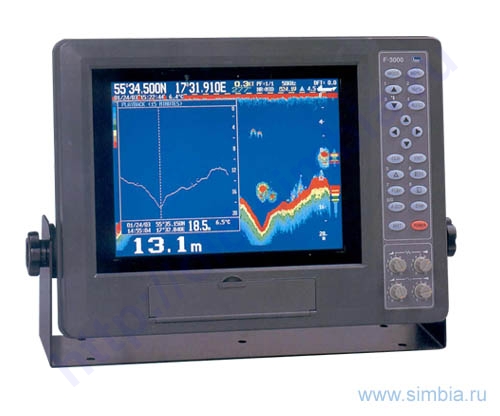

Navigation sounder: JMC F- 3000
|
|
Navigational double-frequency echosounder with 10,4 inch color LCD VGA display;
Possible working frequencies 50, 100, 135, 200 kHz (135 kHz - "Sargan" transducer)
Possibility of saving nonvolatile memory of navigational data up to 24 hours;
10 minutes record of "alive" echogram;
Possibility of black-and-white printing of echogram on a printer;
Is corresponded to the demands of IMO MSC 74 (69) resolution;
Is designed for any type of vessels of any tonnage;
Approved by Russian Maritime Register.
|
Technical specifications:
Parameters, function | Values
| Screen | analog RGB-color backlit TFT-LCD, 8 inches
| Echo Colors, resolution | 8 colors, 640õ480 pixels
| Automatic mode | auto ranges, auto power
| Echogram Storage Capacity | 10 minute-echogram, 24 hour - graphic
| Transducer Frequency | double-frequency, 50/200kHz, 38/100kHz, 135kHz
| Transmit Power | up to 1 kW, RMS regulated
| Depth Ranges, m (Fò, Fì, Br) | 8 ranges: from 5 to 1000 m
| Image Feed Rates | from 1 : 1 to 1 : 4 and freeze
| Noise Reduction | low, mid and high
| Echo Threshold | up to 5 weak echo colors suppressible
| Echo Dynamic Ranges | from 3 to 6 dB/color
| TVG | STC, smooth reg
| Transducer Draft | adjustable in 0.1 unit steps
| Alarm | depth and absence of power supply
| Temperature Sensor | T-300, T-300 or T-400 thermistor (option)
| Digital I/O Interface | NMEA-0183
| Type of transducers | RadarSonic 706-50/200T-3000, RS 570-50/200, NAM-36-m, Sargan
| Power Requirements | 10 to 40 volts DC, approx.15W, or AC 220 V, 20 W
| Cabinet Dimensions | 366õ275õ110 mm
| Display Unit Weight | approx. 6.6 kg with mounting bracket attached
|
|
The list and characteristics of used transducers
A scope of delivery:
- Display;
- Processor unit;
- GPT;
- Transducer;
- A set of mounting tools.
|
| |
|
| |
|
