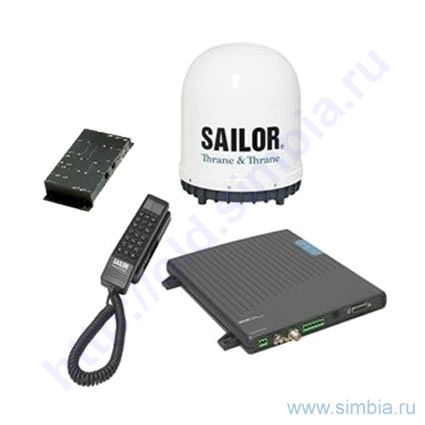

Satellite systems: Thrane&Thrane TT- 3064A
|
|
|
Super light, compact and inexpensive marine satellite terminal
Possibility of organizing fax connection, data transmission and e-mail
Possibility to install at the vessel of any tonnage
Possibility of connection outward alarming and loudspeaker
Personal access with usage of build reader of SIM-maps
Hidden transmitter location in a deck-cabin with possibility of carrying
out garniture for comfort installation
|
Technical specifications:
| Parameters, function | Values
| | Telephone unit size | 25 x 268 X 211 mm
| | Antenna size | 210 x 240 mm
| | Size of tube carrier | 160 x 61 x 27 mm
| | Tube size | 200 x 52 x 33 mm
| | Telephone unit weight | 1,3 kg
| | Antenna weight | 2,2 kg
| | Weight of tube carrier | 0,15 kg
| | Tube weight | 0,25 kg
| | Power supply | From 10 to 32 VDC
| | Allowable vessel oscillations | Rolling ± 25°
Pitching + 15°
Course deviation + 8°
Vertical oscillations + 0,2g
Horizontal oscillations + 0,2g
Pitching + 0,5g
Turn + 12 deg/sec
Speed is 30 knots
| | Antenna steadiness to wind | Up to 100 knots
| | Antenna steadiness to icing | Up to 25 mm of ice
| | Antenna steadiness to rain | Up to 100 mm/hour
| | Antenna splashproof | Drops in any direction
| | Antenna shock resistance | 20g/11ms
| | Temperature mode | From - 25° C to + 50° C in a working mode
From - 40° C to + 80° C in keeping
|
|
A scope of delivery:
- Transceiver
- Antenna
- Cable
- A set of mounting tools
|
| |
 |
|
| |
|
