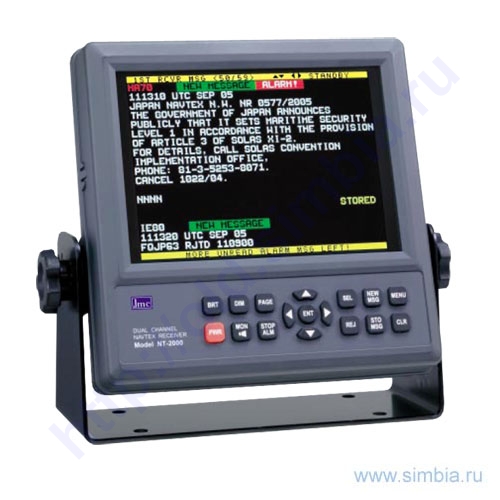

Navtexes: JMC NT- 2000
|
|
|
Two independently operating receivers, one with a frequency converter,
are built-in to simultaneously receive international (518 kHz) and either
of 490 kHz or 4209,5 kHz domestic transmissions ensures ensures reliable reception
of navigational and meteorological information and also messages on
search and rescue of vessels which are being wrecked and other emergent
messages.
High contract 4.5-inch monochrome LCD display. Huge message storage
capacity stores more than 120.000 characters or of average 300 messages.
A short stainless whip-type active antenna is supplied as standard for
coastal or medium range operation.
|
Technical specifications:
| Parameters, function | Values
| | Working range of coastal station | From 250 to 400 mile
| | The frequency of receiving | 518 kHz, 490 kHz and 4209,5 kHz
| | The class of receiving signal | Frequency telegraphy F1B
| | Receiver sensitivity | Not worse than 1 mkV
| | Stray radiation | Not more than 2 nVt
| | Memory capacity | 200 messages (in average 500 characters)
| | A type of receiving antenna | Active with coaxial cable and flagpole 60 centimeters antenna (120 centimeters - option)
| | Display: |
| | Type of display | Color LCD
| | Size along a diagonal | 8 inches
| | Amount of lines | 18
| | Amount of symbols in a line | 40
| | Power supply: |
| | Voltage | From 11 to 40 VDC
| | Power consumption | Not more than 15 Vt
| | Conditions of operation: |
| | Temperature | From -15 to +55°Ñ (receiver)
From -40 to +70°Ñ (antenna)
| | Humidity | Till 93% (during 40°C)
| | Receiver dimensions | 225(245) õ 225(271) õ 135 mm (with/without mounting bracket)
| | Mass | around 3.3 kg |
|
A scope of delivery:
- NT-2000 receiver;
- Active antenna with a cable;
- Flagpole antenna;
- A set of mounting parts;
- In-line documentation.
|
| |
 |
|
| |
|
