Sonar: Sonic KCS-3885Z
|
|
|
Power is not the only quality needed to achieve good search results. Integration of all the
following features satisfy professional skippers, such as real effective power, minimized side-lobe,
stabilization, and a precise display of the target.
Different display modes can be selected depending on the distance, fish type, and fishing methods
Desired image processing methods can be selected
Unnecessary side-lobe is minimized to the lowest possible level

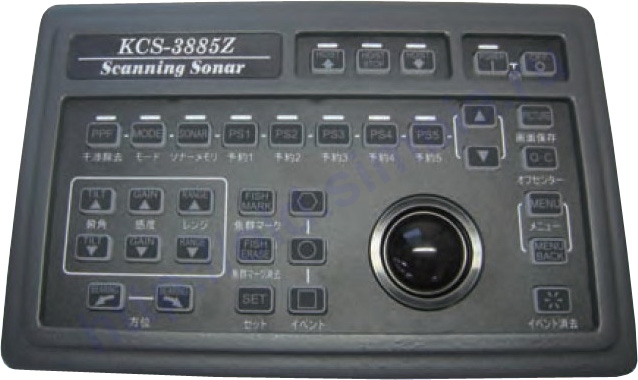

User-friendly miniaturized controller
Advanced TX/RX stabilizing function
Strong, stable hoist unit with guide rings
Reliable stainless cover for protecting transducer

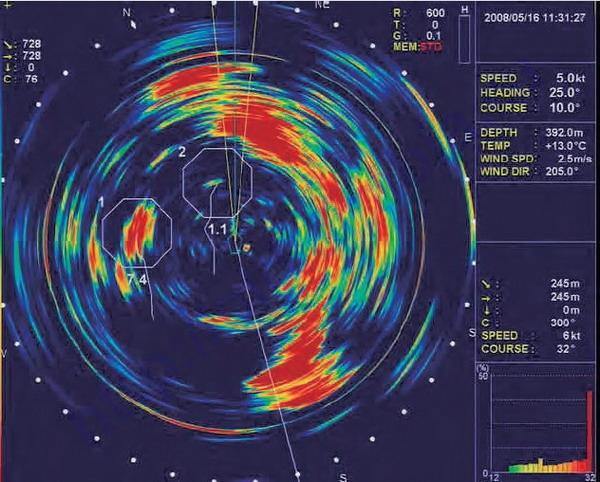

Advanced sectional image
Easy in reading and control system menu makes work with a sonar comfortable and quick.
|
Technical specifications:
| Parameters, function | Values

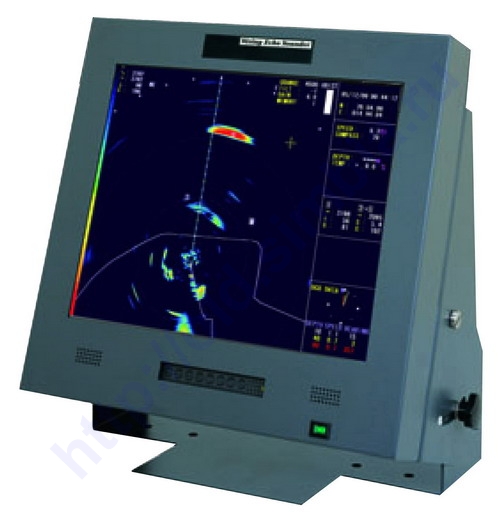

| | Display section | LCD TFT 19", 21" color display
| | Frequency: |
| | KCS-3885Z Lb | 88 kHz
| | KCS-3885Z Le | 94 kHz
| | Display resolution | SXGA (1280 x 1024)
| | Display colors: |
| | Sonar image | 32 color display
| | Character | 4 color display
| | Marker | 2 color display
| | Display modes | Head-up, north-up, and true motion (*External signals are necessary)
| | Additional modes: |
| | Stabilization | 20 degree c ompcnsation
| | off-center | enlarged 1.5 times in a desired direction
| | Simultaneous screen modes: |

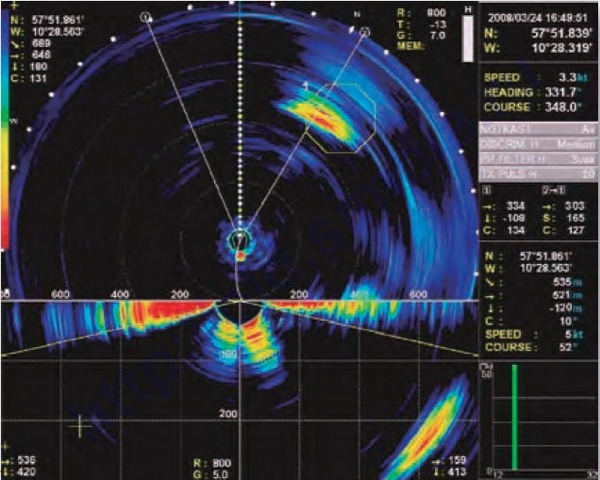

| | Vertical section screen | 1 direction, 2directions, enlarged screen
| | sonar 2 dire section | lengt hwise, crosswisc, memory image, audio image, sonar enlarged screen, multiple screen, fish finder image
| | Ranges: | 150, 200, 250, 300, 400, 500, 600, 700, 800,900, 1000, 1200, 1400, 1500, 1600, 1800, 2000, 2500, 3000, 4000, 5000, 6000, 7000, 8000, 9000, 10000
| | Pulse width | 0,5 - 200 ms
| | Receiving method | Super heterodyne method, real-time beam method, and forming method
| | Transmission method | OMNI transmission/special transmission method
| | Tilt angle range | 20° - upward, 60° - downward
| | Section detection range | 0 - 60° downward
| | Beam: | at 3dB
| | Transmission | Horizontal 360° x 60°, Section 12° x 60°
| | Receiving | Horizontal 8° x 8°, Section 10° x 12°
| | Additional functions: | Interference elimination, signal oroccssing, clutter, TVG, AGC, memory card, and auto tilt angle functions
| | External signal input: | NMEA 0183 : GGA, GLL, VTG, HDT, HDM, HDG, MTW, DBT, DBS, MWV, MWD, CUR
| | Hoist unit stroke | LL = 1350 mm
| | Power supply: |
| | Processing | Single-phase 100 - 200VAC, 50/60 Hz, and 400VA
| | Receiving | Single-phase 220VAC, 50/60 Hz, and 600VA
| | Sending | Single-phase 220VAC, 50/60 Hz, and 500VA
| | Hoist unit | 3 phase 220VAC, 50/60 Hz, and 1500VA
| | Dimensions and Weight: |
| | Display I-33 | 460 x 430 x 345 mm, 24Kg
| | Control panel RC-17 | 246 x 158 x 46 mm, 1Kg
| | Processing PRC-52 | 280 x 450 x 388 mm, 21Kg
| | Receiving RX-42 | 665 x 754 x 445 mm, 95Kg
| | Sending TX-25 | 532 x 670 x 440 mm, 85Kg
| | Hoist unit | 690 x 3510 x 714 mm, 510Kg
|
|
A scope of delivery:
- Display
- Control panel
- Processor unit
- Receiving unit
- Sending unit
- Hoist unit
- A set of mounting tools
|
| |
 |
|
| |
|
