Trawl sounders: Simbia SI - 6110
|
|
|
Separate and combined presentation of echosounder and trawl sounder information on a display.
Using of all advantages of Simrad ES-60 echosounder's software.
Wide dynamic range of target detection from plankton to rock bottom.
Linear record and accelerated reproduction of information having volume to 300 hours.

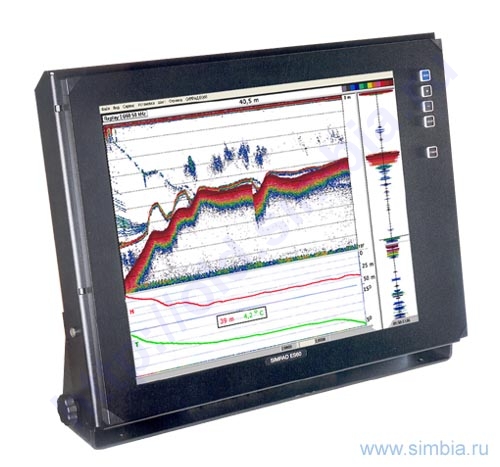

Graphic and digital presentation of echosounder and trawl sounder information on a display.
Any computer display (LCD, CRP) can be a source of reflecting the information from trawl sounder.
|
Technical specifications:
| Parameters, function | Values
| | Max depth of immersion | 1500 m (2500 m)
| | Cable length: |
| | cable KG1-30 (d 6,3 mm) | from 500 to 4000 m
| | according to special order | from 500 to 5500 m
| | cable KG1-55 (d 9,4 mm) | from 500 to 2700 m
| | Registration range | from 3 to 200 m
| | Detection range: |
| | of big single fish (Rý = 0,1 ì) | >300 m
| | of bottom (silt, sand) | >1000 m
| | Work frequency | 50±1 kHz
| | Monitoring of depth of trawl unit move: |
| | range | 0 - 1000 m (0 - 2500 m)
| | accuracy up to 200 m | ± 3 m
| | accuracy more then 200 m | ± 1,5%
| | Monitoring of water temperature | from -5° to +30° Ñ ± 0,3° Ñ
| | Resolving capacity during reflection: |
| | depth | 0,1 m
| | temperature | 0,1° Ñ
| | Power supply | 220 VAC, 50 Hz, 90 W
| | Dimension: |
| | trawl unit SI-110 | 460 õ 300 õ 90 mm
| | trawl unit SI-110-2 | 540 õ 300 õ 100 mm
| | GPT transceiver | 284 õ 112 õ 246 mm
| | SI-53 interface | 180 õ 150 õ 60 mm
| | Mass: |
| | trawl unit SI-110 | 9,0 kg
| | trawl unit SI-110-2 | 11,0 kg
| | GPT transceiver | 7,5 kg
| | SI-53 interface | 1,2 kg
|
|
A scope of delivery:
- Trawl units SI-110
- Processor unit
- GPT 50 kHz ES6-201384 (Simrad) transceiver
- SI-53 interface (with cables)
- Trackball
- Software
- Installation kit
- A set of spare parts
- Documentation
Options:
- LCD monitor from 15 to 20 inches
- SI-110-2 trawl units
- GPT 38/50 kHz ES6-201370 (Simrad) transceiver
- GPT 50/200 kHz ES6-201377 (Simrad) transceiver
- Transducer 38 or 200 kHz (SIMRAD)
- Trawl catch sensor "Kolibri"
- Color printer
- Mouse
- Keyboard
|
| |
 |
|
| |
|
