Gyrocompass: Simrad GC-80
|
|
|
Portative gyrocompass GC-80 (SIMRAD, Norway) is designed for
better managing of the vessel of any type which rate of movement
does not exceed 30 knots. Supplies with he following data:
course regarding geographic meridian.
Corresponds to the demands of IMO A424(XI), A694(17),
IEC:60945,61162, ISO: 8728(1997).
|
Technical specifications:
| Parameters, function | Values
| | Settle point error, degree | < 0,1 x sec of width
| | Static error, degree | < 0,1 x sec of width
| | Dynamic error, degree | < 0,4 x sec of width
| | Error from start to start, degree | < 0,1 x sec of width
| | Speed of backtrace | > 75 degree/second
| | Time of readiness, min | < 180
| | Inputs: |
| | Width data | NMEA 0183 (RS232 or RS422) from GPS
| | Speed data | Impulse or relay contact
200, 400 impulses per mile from lag
NMEA 0183 (RS232 or RS422) from lag
NMEA 0183 (RS232 or RS422) from GPS
| | Outputs: |
| | Digital | 10 outputs RS422/485
| | Step | 4 outputs (24V DC), 6 step for degree
| | Net power supply | 110/220 V AC
| | Emergency power supply | 24 V DC
| | Maximum current of consumption | 1,4 À
| | Dimension sizes of set up unit | 438 õ 340 õ 340 mm
| | Weight of set up unit | 23 kg
| | Dimension sizes of control panel unit | 495 õ 364 õ 182 mm
| | Weight of control panel unit | 14 kg |
|
A scope of delivery:

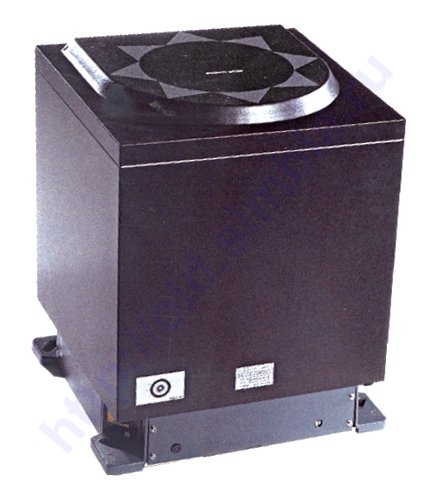

- Set up unit with sensitive element;

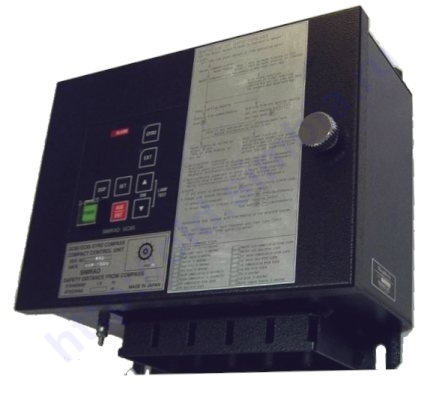

- Portative control panel unit.
Note!
Type and amount of repeaters are defined during order.
|
| |
 |
|
| |
|
