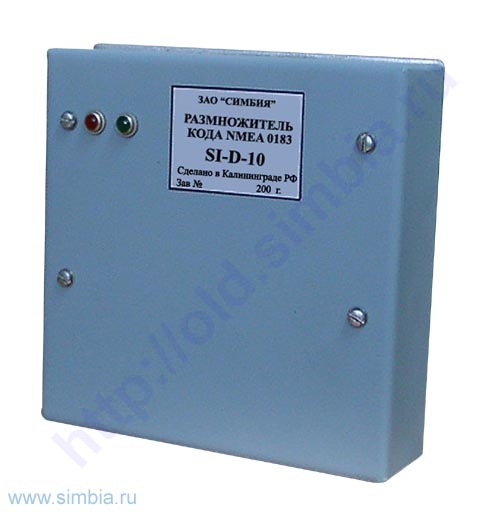

Distributor NMEA: Simbia SI - D - 10
|
![](http://old.simbia.ru/images/blank.gif) |
DISTRIBUTOR SI-D-10 is designed for signals distribution from output of
one data source following in NMEA-0183 to inputs of several data suppliers
in NMEA-0183.
Supplying from the vessel circuit of AC distributor provides also outward
users with constant stabilized voltage 12V.
|
Technical specifications:
Parameters, function | Values
| Input: |
| Signals from data source | NMEA-0183
| The amplitude of signal tension from data source | from 4 to 9 V
| Input resistance | >500 Îm
| Output: |
| Signals to data suppliers | NMEA 0183
| The amplitude of signal tension on each output | (6,0 ± 0,5)V
| The amount of outputs | Till 10
| The current of loading of each supplier | 20 mÀ (Õ6), 50 mÀ (Õ7)
| Power supply: |
| AC | 220 V, 50Hz, 40mÀ
| DC | 12 V, 0,25A max
| Emergency accumulator | 24 V, 0,30À max
| Output constant stabilized voltage | 12 V, 0,20À max
| Mass | 1,2 kg
| Dimensions | 162 õ 162 õ 55 mm
|
|
A scope of delivery:
- NMEA distributor SI-D-10
- Passport S3.034.013 PS
- A set of mounting tools.
|
| |
