Sonar: Simrad SX- 90
|
|
|
The longest range of any civil sonar.
High speed hull unit - up to 24 knots.
Multi frequency on low frequencies from 20-30 kHz gives longer detection range and larger search area, interference rejection.

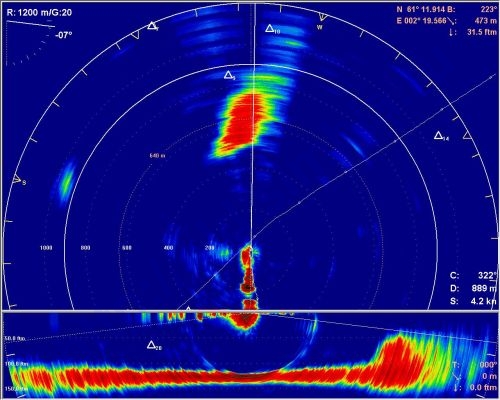

90° Vertical view - Shows the vertical distribution without going over the fish.
Beam stabilization provides with accurate target representation independent of the vessel movement.
Easy in reading and control system menu makes work with a sonar comfortable and quick.
|
Technical specifications:
| Parameters, function | Values
| | Working frequencies | Main - 26 kHz, Options Ö 20, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30 kHz
| | Working ranges | From 150 to 8000 m
| | Pulse length | From 0,9 to 85 ms
| | Tilt | from +10 to +60° with step 1°
| | Acoustic pressure: |
| | One Beam | 223 dB/mPa
| | All around looking (OMNI) | 217 dB/mPa
| | Target range detection | 3000 m ref. target 0 dB
| | Transceiver | 256 channels of transmission/receiving
| | Transducer | Spherical 256 elements
| | Horizontal beam | 12° or 360°
| | Vertical beam | 16,5° or 60° (90°\180° option)
| | Screen | 64 or 16 colors, day and night brightness, resolution 1280 õ 1024 pixels
| | Hull unit: |
| | Transducer lowering | 1200 mm
| | Raising time | 30 sec
| | Max. vessel speed | 24 knots
| | Power supply: |
| | Display | 115/230 V, 50/60 Hz, 100 W
| | Processor | 115/230 V, 50/60 Hz, 200 W
| | Transceiver | 230 V, 50/60 Hz, 600 W
| | Hull unit | 230/380/440 V-three phase, 3000 W
| | Dimensions: |
| | Monitor | 540 õ 410 õ 105 mm
| | Processor | 445 õ 185 õ 365 mm

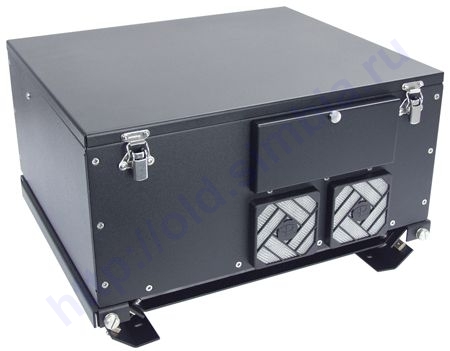

| | Receiver | 520 õ 545 õ 420 mm
| | Control unit | 385 õ 165 õ 48 mm
| | Hull unit | 2290 õ 508 õ 620 mm
|
|
Êîìïëåêò ïîñòàâêè:
- Display.
- A set of mounting tools.
|
| |
 |
|
| |
|
