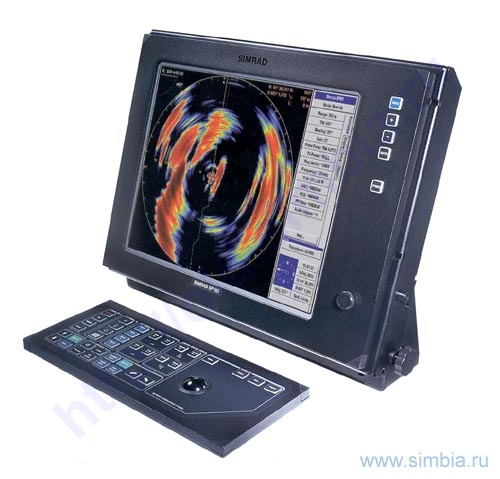

Sonars: Simrad SP60 / SP70 SARGAN
|
|
|
Joint development of "SIMRAD" and "Simbia" companies.
Sonars where hull unit is a hull unit from sonar "Sargan".
It is enough to buy transceiver, interface, processor and antenna; thanks to such purchase the shipowner will save 25% of cost of base variant.
All parameters, modes and functions of sonars SP60 and SP70 are fully saved.
Simbia produces and delivers transition and butt assemblies for usage of hull unit "Sargan".
|
Technical specifications:
| Parameters, function | Simrad SP60/Sargan | Simrad SP70/Sargan
| | Working frequency | 26 êÃö | 26 êÃö
| | Working ranges | from 150 to 8000 m | from 150 to 8000 m
| | Antenna beam tilt angle | from +10° to -60° | from +10° to -60°
| | Antenna beam stabilization | ± 20° pitching and rolling | ± 20° pitching and rolling
| | Input/output data (RS232) | Lag, gyro, echosounder, GPS, ITI/FS trawl sounders | Lag, gyro, echosounder, GPS, ITI/FS trawl sounders
| | Hull unit | 1200 mm | 1200 mm
| | Working modes | all modes of SP60 sonar | all modes of SP70 sonar
| | Power supply | 115/230 VAC, 50/60 Hz | 115/230 VAC, 50/60 Hz
| | Option: | |
| | Work on three frequencies | 24 kHz, 26 kHz, 28 kHz | 24 kHz, 26 kHz, 28 kHz
| | Multi-frequency work | 20-30 kHz, step 1 kHz | 20-30 kHz, step 1 kHz
| | Beam tilt angle | | 90°
| | Display | from 10” to 23” LCD | from 10” to 23” LCD
|
|
A scope of delivery:
- Display;
- Processor unit
- Interface unit
- Transceiver
- Control panel
- Connection cable
- Transducer with cable
- Hull unit "Sargan"
- Adapter flange
- Gyro "IGL-01"
- A set of mounting tools.
|
| |
 |
|
| |
|
