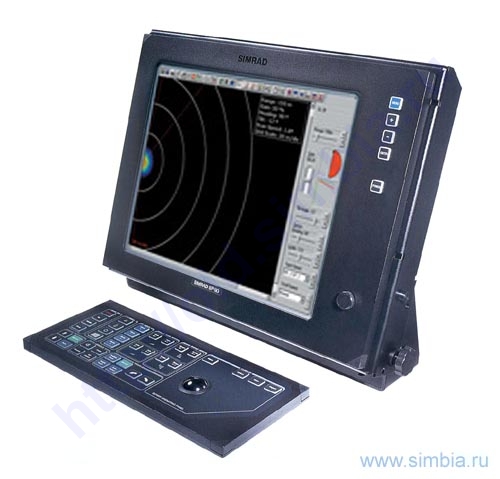

Sonars: Simrad SL- 35
|
|
|
Minimum detection range equaling 5 meters is comfortable for work and school detection on a small ranges and on shallow waters.
Mechanic scanning of viewed area increases the sonar resolution capacity with a help of stepping motor.
Modular configuration system allows to apply a separate component parts which are used in other Simrad sonars.
Small dimensions and system weight allows to install it the smallest purse seiners.
Dual frequency work on a high frequencies 90 or 160 kHz makes possible to increase interferences.
Roll and pitch stabilization provides sharp image of purpose independent of the vessel movement.
|
Technical specifications:
| Parameters, function | Values
| | Working frequencies | 90 or 160 kHz
| | Working ranges | From 5 to 1100 m
| | Transmit Power | 1,2 kW
| | Detection range | 750 m - 90 kHz, 400 m - 160 kHz
| | Transducer: |
| | Diagram of direction | 8° õ 8°
| | Tilt upward | From 0° to +10°
| | Tilt backward | From 0° to -90°
| | Stabilization | During pitching up to ± 20°
| | Side lobe | - 25 dB
| | Data input/output, NMEA | Log, gyro, GPS, echosounder, ITI/FS trawl systems, system Ð132
| | Reflection on a screen | 64 or 16 colors, day and night brightness, 1280 õ 1024 pixels
| | Hull unit: |
| | Travel | 250 or 400 mm
| | Raising time | 10 sec
| | Maximum ship speed | 15 knots
| | Up/down | Hydraulic unit
| | Power supply: |
| | Display | 115/230 V, 50/60 Hz, 100 W
| | Processor | 115/230 V, 50/60 Hz, 200 W or 24 VDC
| | Dimensions: |
| | Monitor | 540 õ 410 õ 105 mm
| | Processor | 206 õ 180 õ 83 mm
| | Control unit | 385 õ 165 õ 48 mm
| | Hoist unit | 1000 õ 458 õ 520 mm
|
|
A scope of delivery:
- Display;
- Processor unit;
- Transducer;
- A set of mounting tools.
|
| |
 |
|
| |
|
