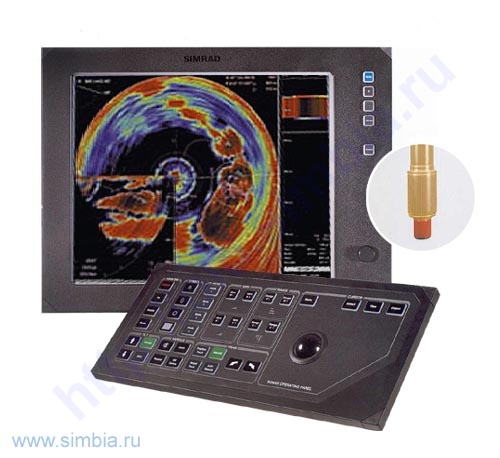

Sonars: Simrad SH - 80
|
|
|
Detects weak and scattered targets under difficult conditions, ideal for mackerel and tuna detection and evaluation
60° vertical representation can be shown on any direction.
Multi frequency work allows if interferences happen to transfer to another frequency.
Beam stabilization provides with accurate target representation independent of the vessel movement.
Same operation and "Sonar Operating Panel" for all Simrad sonars.
|
Technical specifications:
| Parameters, function | Values
| | Working frequencies | Main: 116 kHz, Options: from 110 to 122 kHz with step 1 kHz
| | Working ranges | From 50 to 2000 m
| | Pulse length | From 0,9 to 75 ms
| | Tilt | from +10 to +60° with step 1°
| | Acoustic pressure | All around looking (OMNI) - 210 dB/mPa
| | Target range detection | 750 m ref. target 0 dB
| | Transceiver | 240 channels of transmission, 480 channels of receiving
| | Transducer: | Spherical 241 elements
| | Horizontal beam | 8° or 360°
| | Vertical beam | 9° or 60°
| | Screen | 64 or 16 colors, day and night brightness, resolution 1280 õ 1024 pixels
| | Hull unit: |
| | Transducer lowering | 1000 mm
| | Raising time | 23 sec
| | Max. vessel speed | 20 knots
| | Power supply: |
| | Display | 115/230 V, 50/60 Hz, 100 W
| | Processor | 115/230 V, 50/60 Hz, 200 W
| | Receiver | 230 V, 50/60 Hz, 600 W
| | Hull unit | 230/380/440 V-three phase, 750 W
| | Dimensions: |
| | Monitor | 540 õ 410 õ 105 mm
| | Processor | 445 õ 185 õ 365 mm
| | Receiver | 520 õ 545 õ 420 mm
| | Control unit | 385 õ 165 õ 48 mm
| | Hull unit | 2290 õ 508 õ 620 mm
|
|
A scope of delivery:
- Display;
- Processor unit;
- Transducer;
- A set of mounting tools.
|
| |
 |
|
| |
|
