Radars: Simrad RA- 40 / RA- 50

Radars Simrad RA- 40 / RA- 50

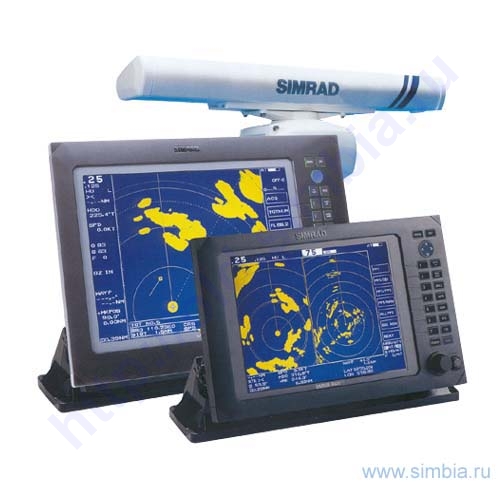

Simrad RA- 40 / RA- 50

Wide color screen dual range radar series with 10" (RA40-RA44) and 15" (RA51-RA54) LCD display of high resolution. Maximum detection range of surface target from 24 nm to 72 nm, with possibility of viewing two ranges at the same time. Is recommended to use on vessels of small and medium tonnage.

RA40-RA44 radars has certificate from RMRS.

Technical specifications:

Parameters, function	RA40	RA41	RA42	RA43	RA44
Range	24 nm	36 nm	48 nm	64 nm	72 nm
Power	2 kW	4 kW	4 kW	6 kW	12 kW
Speed rotation	24/48 turn/min	24/48 turn/min	24/48 turn/min	24/48 turn/min	24/48 turn/min
Antenna type	Radom	Radom	Opened	Opened	Opened
Parameters of emission	5,9°/25°	3.9°/25°	2.5° or 1.8°/22°	1.8° or 1.2°/22°	1.8° or 1.2°/22°
Antenna size	1.5 feet	2 feet	3 or 4 feet	4 or 6 feet	4 or 6 feet
Antenna weight	6 kg	10 kg	28 kg	28 kg	28 kg
Display type	LCD color	LCD color	LCD color	LCD color	LCD color
Screen size	10"	10"	10"	10"	10"
Screen resolution	640 x 480	640 x 480	640 x 480	640 x 480	640 x 480
АТА for 10 targets	Option	Option	Option	Option	Option

Parameters, function	RA51	RA52	RA53	RA54
Range	36 nm	48 nm	64 nm	72 nm
Power	4 kW	4 kW	6 kW	12 kW
Speed rotation	24/48 turn/min	24/48 turn/min	24/48 turn/min	24/48 turn/min
Antenna type	Radom	Opened	Opened	Opened
Parameters of emission	3.9°/25°	2.5° or 1.8°/22°	2.5° or 1.2°/22°	1.8° or 1.2°/22°
Antenna size	2 feet	3 or 4 feet	3 or 4 feet	4 or 6 feet
Antenna weight	10 kg	22 kg	28 kg	28 kg
Display type	LCD color	LCD color	LCD color	LCD color
Screen size	15"	15"	15"	15"
Screen resolution	1280 x 960	1280 x 960	1280 x 960	1280 x 960
АТА for 10 targets	Set	Set	Set	Set

A scope of delivery:

Display
cable 10 m
antenna
A set of mounting tools

Additionally:
mini ARPA for 10 targets
power supply unit
